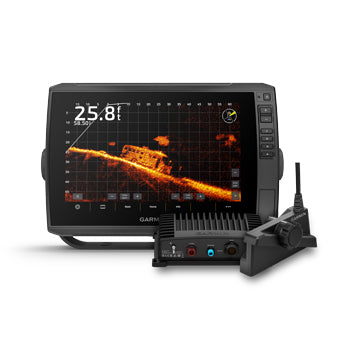

Garmin ECHOMAP Ultra 2 106sv 10” LiveScope Plus Bundle

Take Your Fishing to New Depths!

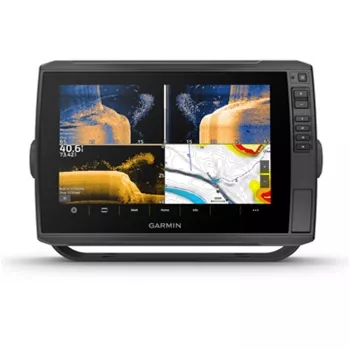

The Garmin ECHOMAP Ultra 2 10” LiveScope Plus Bundle features a 10-inch IPS keyed assist touchscreen with 1280 x 800 resolution. The 106sv GN+ includes a quick release bail mount allowing for easy mounting and unmounting of the head unit. Simply snap the 106sv out of the quick release mount while leaving cables plugged into the mount.

Multi-band GPS technology provides fast, 10Hz updates providing improved position accuracy and reception even in areas where signals may be weak. The ECHOMAP Ultra 2 has an easy-to-use interface with a modern operating system, updated graphics and new menu options.

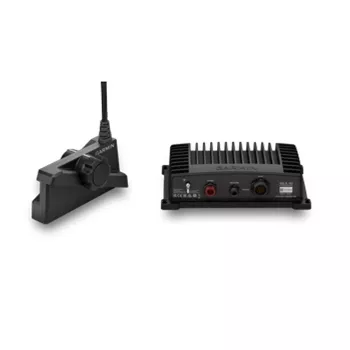

This Garmin Value Bundle includes the LiveScope Plus Sonar System with GLS 10 and LVS 34 Transducer. See real-time sonar images including structure, bait and fish swimming around your boat. Garmin LiveScope imagery is better than ever! The LiveScope Plus System provides 35% improved resolution, reduced sonar artifacts, crisper, sharper images and improved target separation over previous models.

Select the mode that best suits your fishing style! The LiveScope Plus System can provide Forward Mode, Down Mode and Perspective Mode with the included mounts. Select Forward Mode for a front and slight down image, Down mode for a picture of what is directly below your boat and Perspective mode for a top-down view. Perspective mode is provided with the use of the included Garmin Perspective Mode Mount for LVS34 Transducers. The LiveScope Plus system also includes a trolling motor shaft and barrel mount.

While the Garmin ECHOMAP Ultra 106sv is preloaded with Garmin Navionics+ charts for the U.S. coastal and inland areas, there is a premium chart option available, sold separately. The Garmin Navionics Vision+ charts provide additional detail for the coverage area of your choice including High Resolution Relief Shading, Aerial Imagery, Satellite Overlay and more! Garmin Navionics Vision+ charts are sold on SD/microSD card and require the use of the Garmin ActiveCaptain app to access premium features.

The ECHOMAP Ultra 2 106sv has an internal sounder supporting Garmin ClearVu, SideVu and traditional sonar (transducer required, sold separately). A single 12 pin connection on the back of the display makes connection a breeze and since this unit allows you to select the transducer you want, Garmin even includes a 8 to 12 pin adapter making it a breeze to adapt an older 8 pin transducer to this unit (*please note 8 pin transducers will not provide CHIRP  SideVu). Built-in Garmin Vivid Color Palettes make it easy to distinguish targets and structure on your display.

Capture and share your fish catches via the ActiveCaptain screen recording feature on your compatible smartphone. These recordings can be easily shared with friends! ActiveCaptain also allows for convenient software updates, access to the Garmin Quickdraw Community and more!

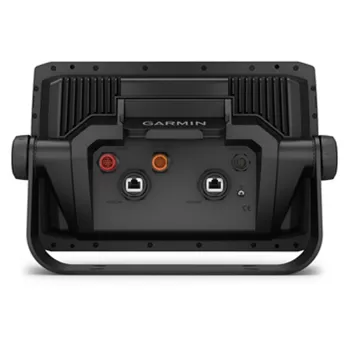

The Garmin ECHOMAP Ultra 2 is equipped with (1) NMEA0183 input and output port, (1) 12-pin sonar port, (2) Garmin network ports, Wireless connectivity, and NMEA2000. Easily connect heading sensors, autopilot, digital switching, FUSION-Link and more!

*Please note, This display has a single 12-Pin Transducer Port. Garmin 12 Pin orange connectors do not support speed thru water via a speed wheel. This display will provide speed over ground via GPS. Speed thru water can be achieved by adding a NMEA Smart sensor, sold separately.

• Display Resolution: 1280 x 800 pixels
• Accepts Data Cards: 2 microSD Card Slots
• Sensors: GPS, GLONASS, GALILEO, BEIDOU
• Receiver: 10 Hz
• Auto Guidance: Built-In Auto Guidance+
• Sonar: Single Channel CHIRP, 70/83/200 kHz, L, M, H CHIRP
• ClearVu: Built-in 260/455/800/1000/1200 kHz
• SideVu: Built-in 260/455/800/1000/1200 kHz
• Garmin Network Network Ports: 2 Large Connector Ports
• 12-Pin Transducer Ports: (1) 12-Pin Scanning Sonar
