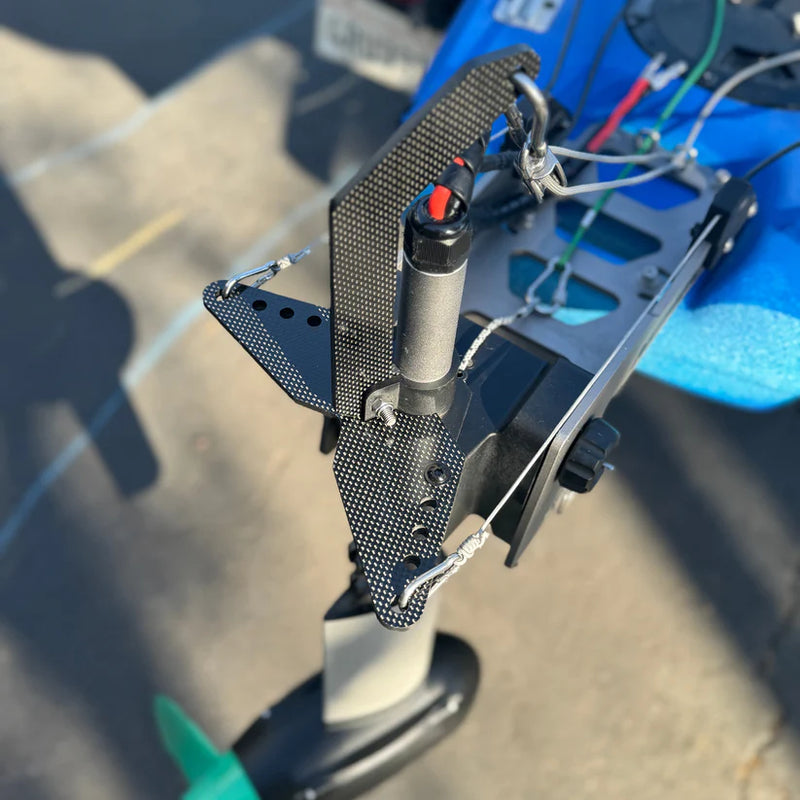

Newport Vessels Carbon Fiber Motor Steering Triangle and Lift Arm Kit

Designed for the Newport Vessels NK Series (NK300, NK180, NK180PRO), this Carbon Fiber Steering Triangle and Lift Arm is a durable and attractive upgrade for your kayak motor.

Crafted from 5mm thick glossy carbon fiber, both the steering triangle and lift arm are CNC-machined for exceptional strength and a premium look. The improved lift arm geometry is designed to prevent the motor from rotating while lifting. The steering triangle mounts directly on top of the stock Newport Vessels steering triangle (screws included) and features an extra steering hole for better steering cable positioning, keeping them farther from the motor mount knobs.

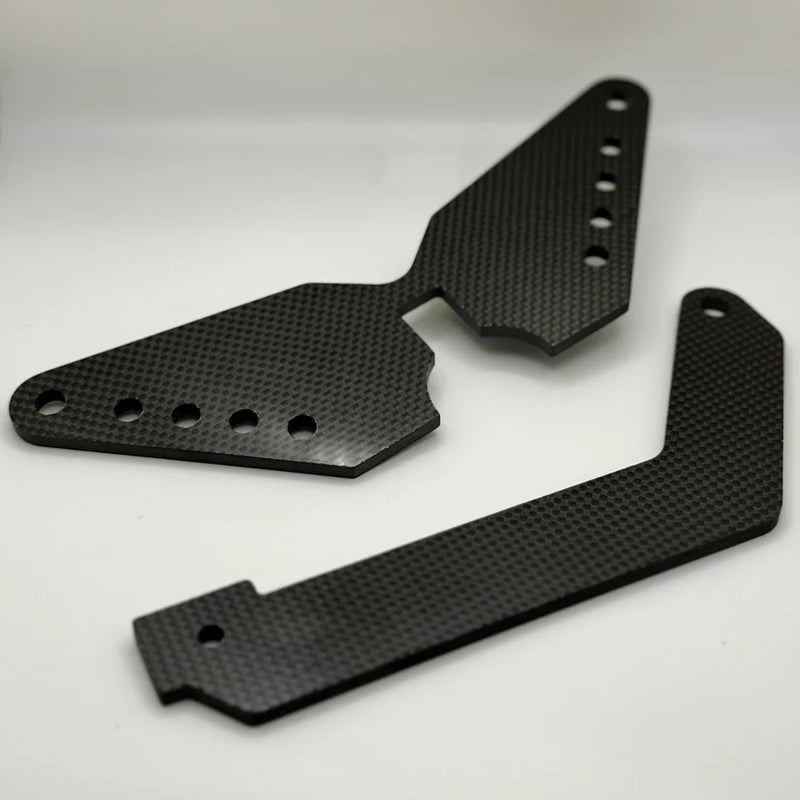

What’s Included in the Kit?

✅ 1 x Carbon Fiber Steering Triangle
✅ 1 x Carbon Fiber Lift Arm (Approx. Dimensions: 7.7" x 1.2")
✅ 2 x 304 Stainless Steel M6 Screws & Locking Nuts

Installation Instructions

Step 1: Remove the Stock Lift Arm

• Ensure the original stock steering triangle is securely in place via the bottom screw and nut.
• Remove the top screw holding the stock lift arm.

Step 2: Install the Carbon Fiber Lift Arm

• Insert the carbon fiber lift arm into place.
• Reinstall the screw and nut, tightening them firmly.

Step 3: Position the Carbon Fiber Steering Triangle

• Place the carbon fiber steering triangle on top of the stock plastic steering triangle.
• Insert the provided screws into the two front (bow-end) holes, but do not fully tighten them yet.

Step 4: Secure the Carbon Fiber Triangle

• Push the carbon fiber triangle as far forward as possible.
• Fasten it to the stock plate using the installed screw and provided locking nut.
• Positioning it fully forward ensures additional support for the rear (stern-side) of the lift arm.

⚠️ Important Note:

🚨 The stock Newport Vessels steering triangle is not included and is required for installation
