Hobie Kayak Mirage Drive Spine - Mod 1
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Finally, a fix for Hobie Mirage MD180 drive bearing failures. With a problem, comes solutions. After going through several rear bearing failures, I had enough. There has to be a better way than spending another $300+ for a spine that you know it will happen again.
If your drive is worn or you just don’t want to have an issue, I have a solution. Not just one but two. Depending on how far gone your spine is there are two options to choose from.

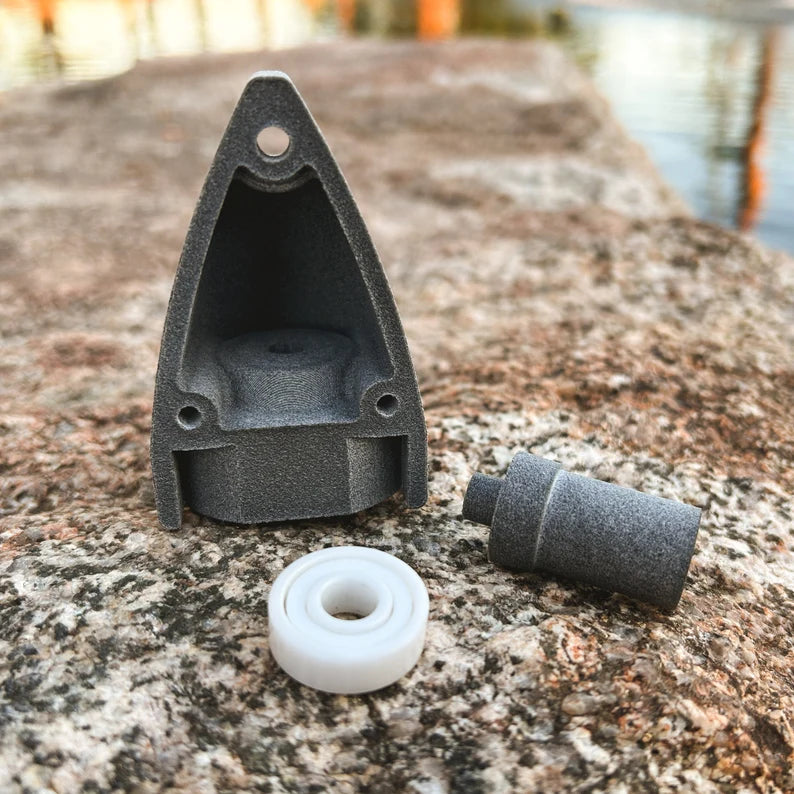

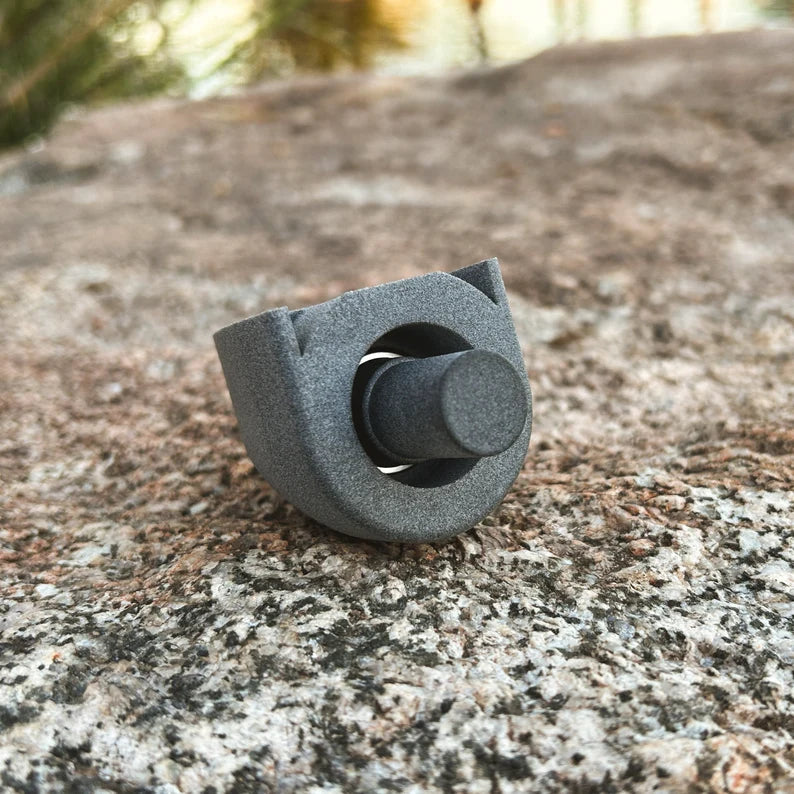

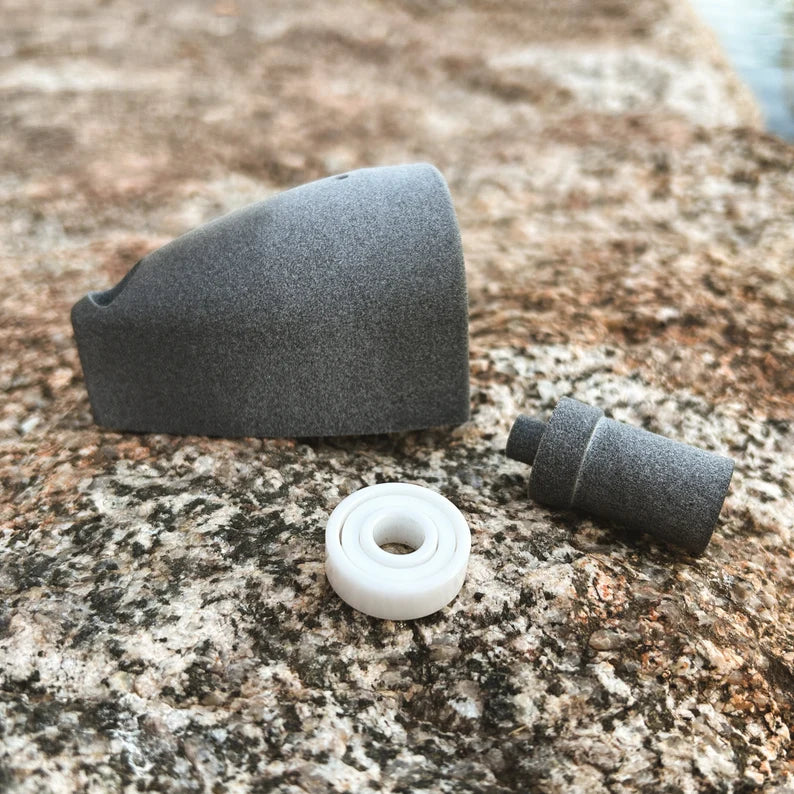

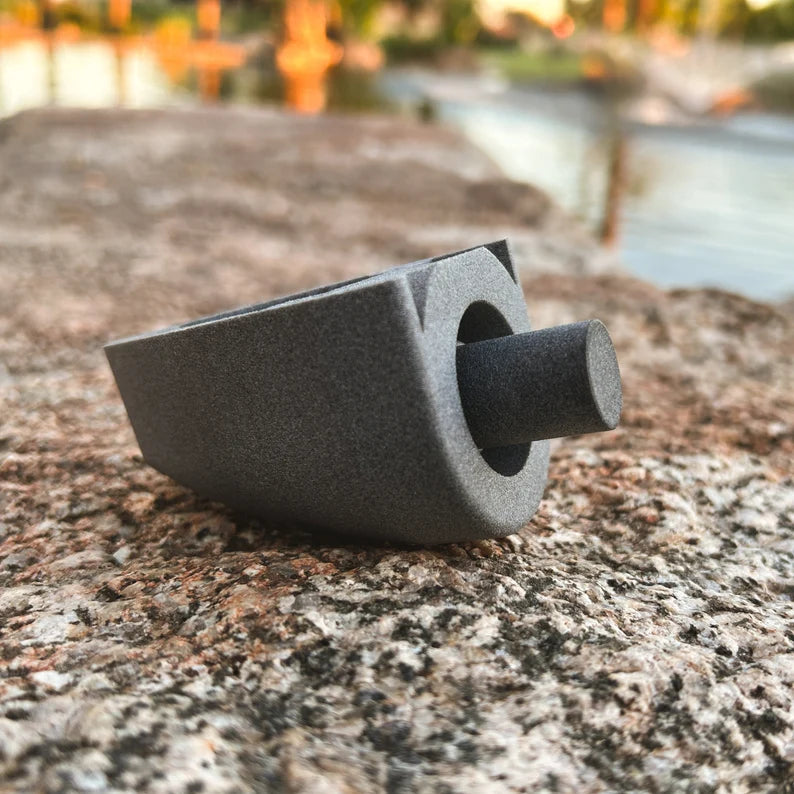

You will receive;
1 - Rear Cup
1 - Shaft insert
1 - Ceramic Roller Bearing
INSTALLATION:
STEP 1: Loosen chain, Remove Cup, Washer and Rollers. Clean area.
STEP 2: You will install the pin into the hole of the spine gear.
STEP 3: Put on supplied bearing.
STEP 4: Install Cup.
STEP 5: Reinstall Chain and set to manufactures specifications.
Bearings:
Ceramic - Salt water use. LOW to NO maintenance. These are a sacrificial part.
Recommended service - Allow drive to dry and apply WD40 to bearing. This will help remove residual water build up. Remove and check for any residual build up. This will vary by case by case.
* Bearing will go bad eventually. There is no guarantee on how long because we all experience different environmental factors.
